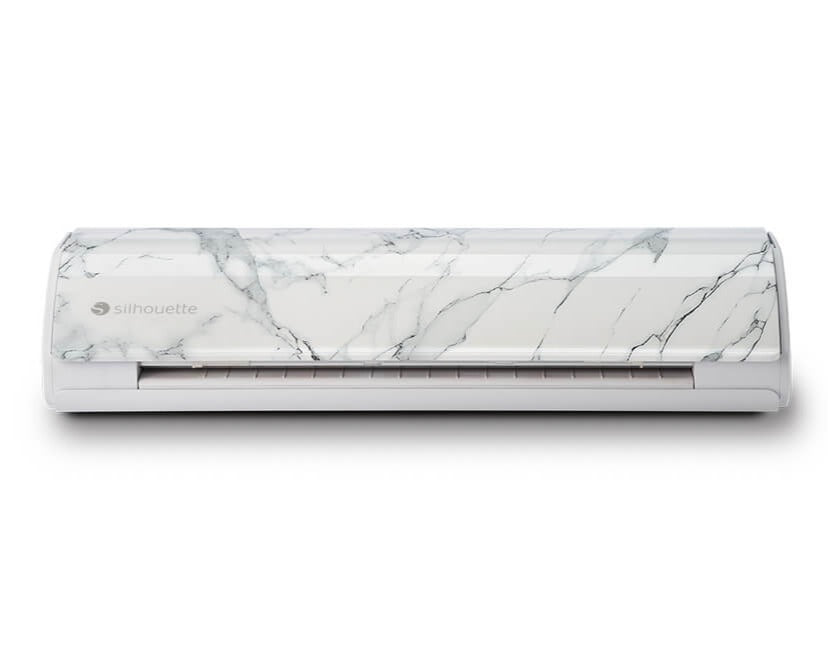

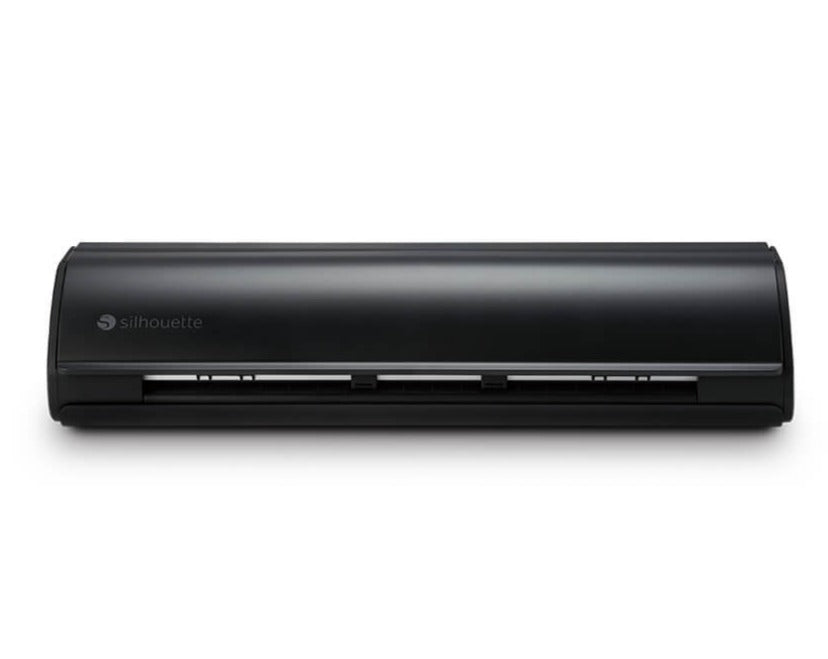

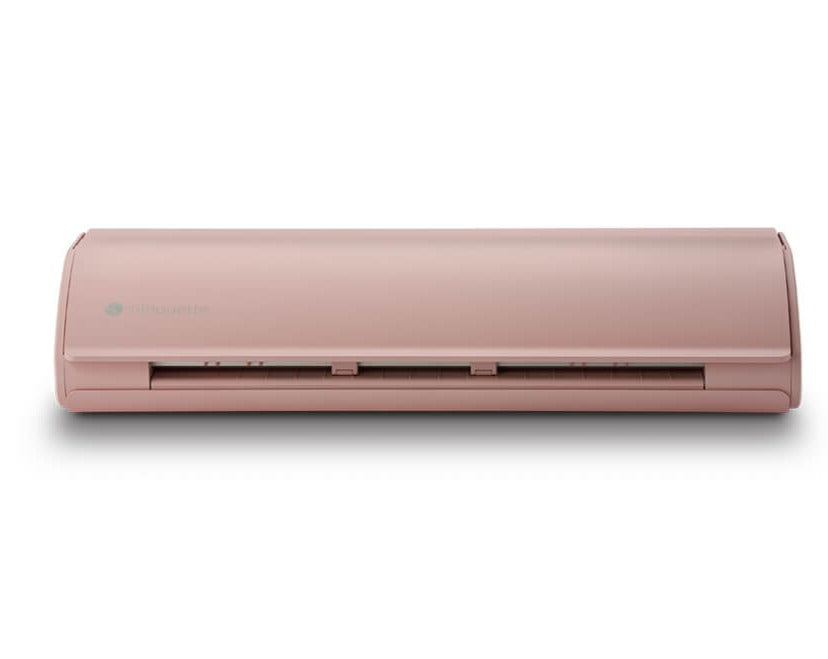

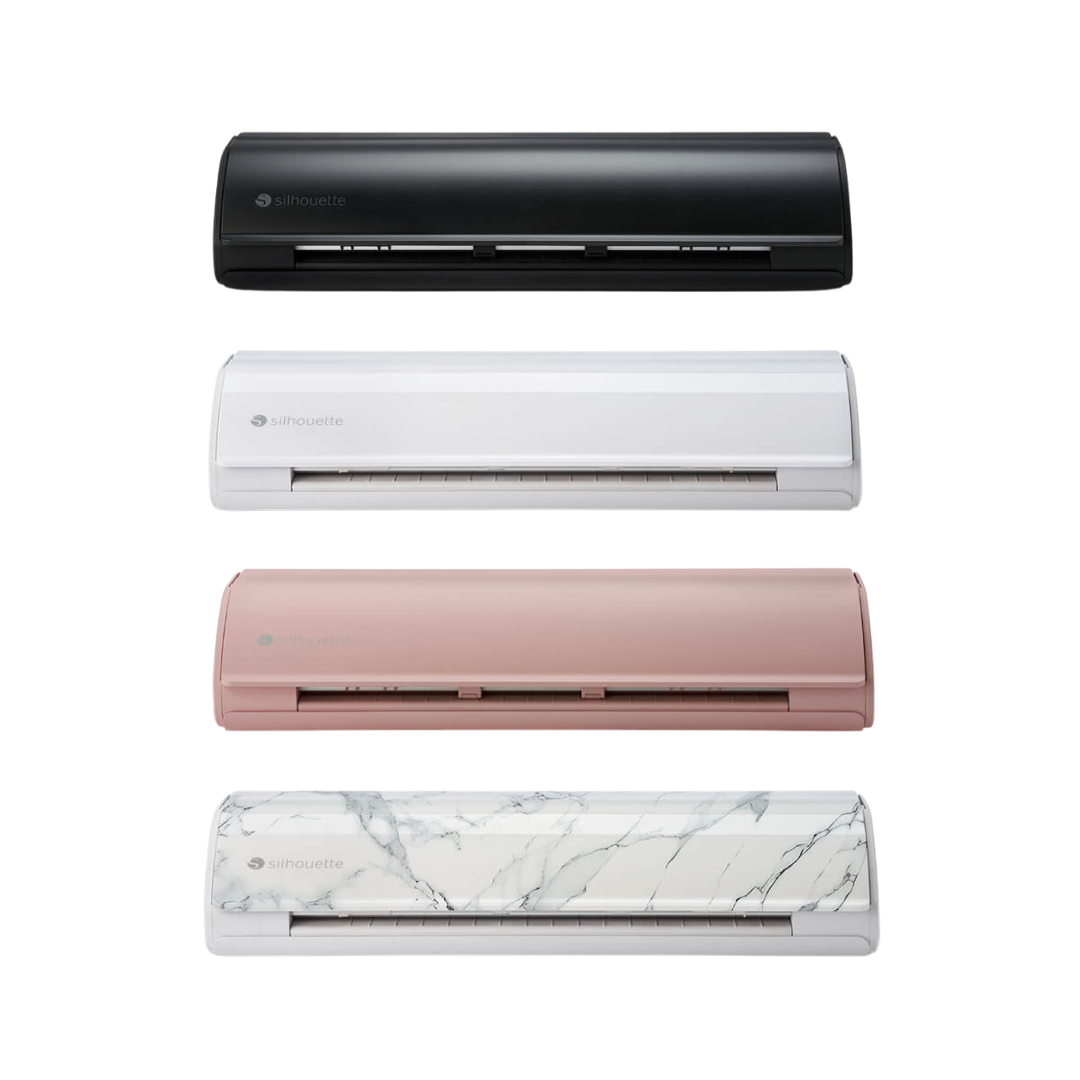

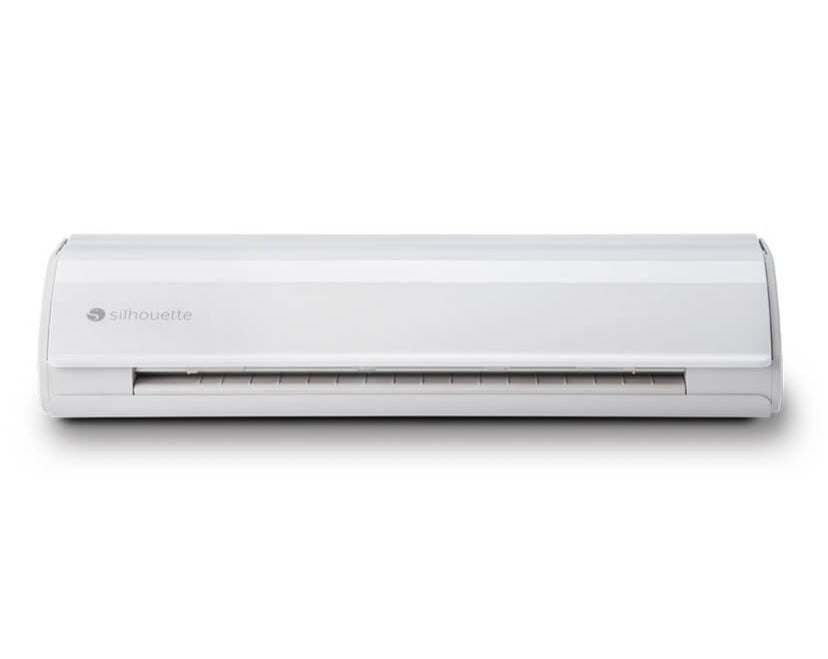

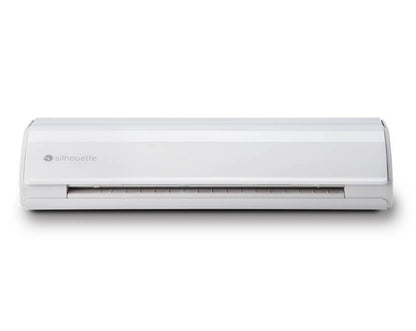

Silhouette Cameo 5

Product Overview

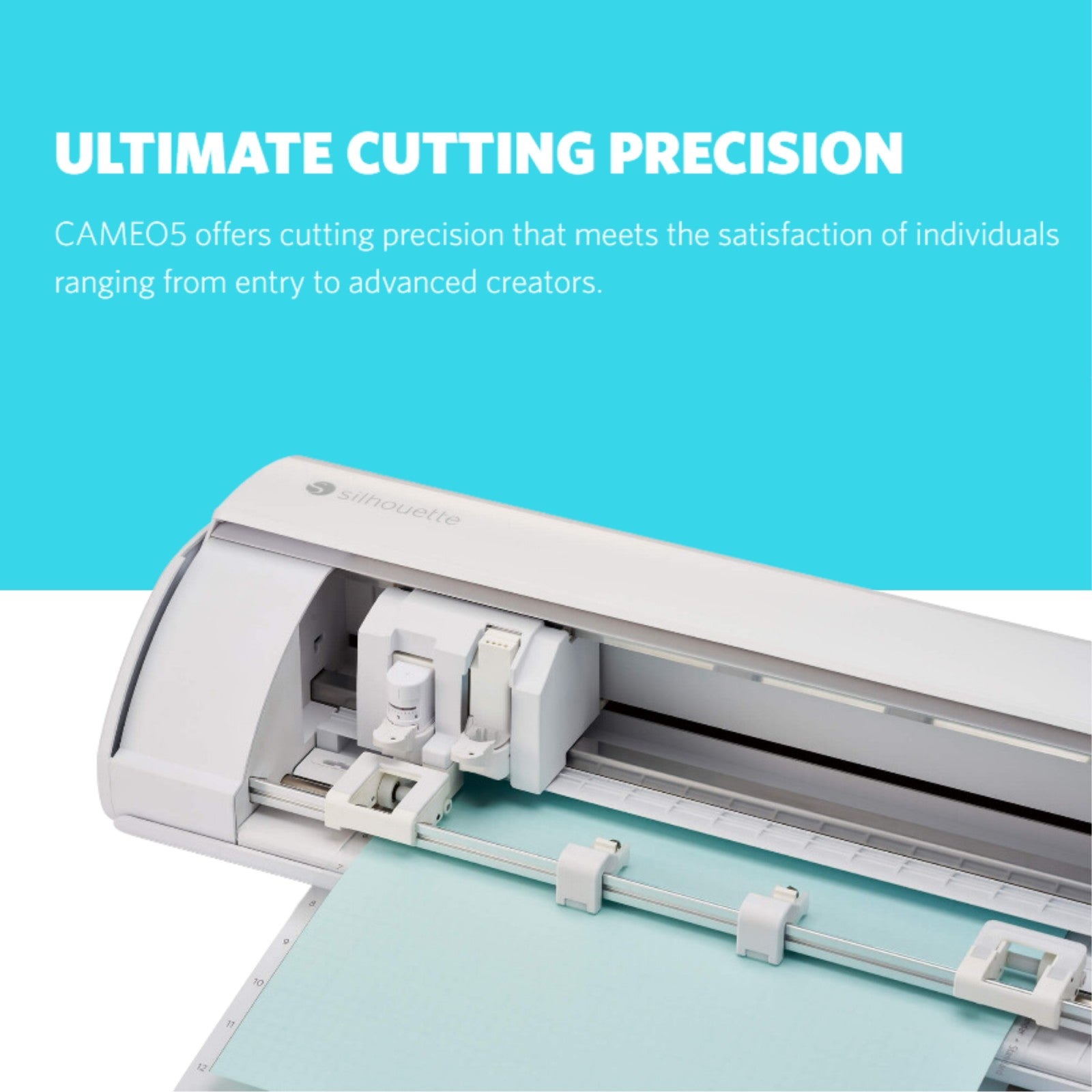

With all-new updated engineering, the Cameo 5 is the fastest, most accurate, and quietest machine in Silhouette's lineup.

Machine features include:

• Power tool capability​
• Auto-cross cutting​ with the AutoBlade
• New reinforced roll feeder attachment​ (attachable)
• Quieter operation​
• Electrostatic mat​ (optional add-on accessory)
• Adjustable pinch rollers​ with improved grip strength and ability to customize the position
• Improved registration mark reading​ for Print & Cut jobs
• Smooth opening lid architecture​
• Full 12-inch cutting width​
• Cut up to 16 feet in length
• Matless cutting capabilities ​
• 3 mm height clearance for thicker materials​
• Automatic tool detection​
• Wireless cutting with Bluetooth® connectivity​
• PixScan™ compatible​
• Driven by Silhouette Studio® giving you limitless design options to customize your projects​

What's Included

• Silhouette Cameo® 5​
• AC Adapter/Power cable set​
• Cutting Mat​
• AutoBlade​
• Blade adjustment tool
• Roll Feeder​
• Silhouette Studio® software (download)​
• 100 exclusive designs (available with registration)
• 1-month Silhouette Design Store subscription (available with registration)

Tech Specs

• Cutting Area: 12 in. x 24 in. with a cutting mat, 11.6in. x 16 ft. with lined material (when using Roll Feeder)
• Maximum Material Thickness: 3 mm (118.11 mils)
• Maximum Cutting Force:
  - Tool Holder 1: 300 gf
  - Tool Holder 2: 5 kgf (highest in machine class)

• Interface: USB 2.0 (FULL-speed) / Bluetooth®
• Unit Dimensions: 22.28 in. x 6.94 in. x 4.89 in. (56.6 cm x 17.6 cm x 12.4 cm)
• Unit Weight: 11 lbs. 2.1 oz (5.05 kg)
• Shipping Dimensions: 24.80 in. x 10.75 in. x 9.45 in. (63 cm x 27.3 cm x 24 cm)​
• Shipping Weight: 16 lbs 13.1oz (7.63kg)​
• Warranty: One year parts and labor (Limited to USA and Canada only)​
• Requires Silhouette Studio® software version: 4.5.700 or higher​
• Minimum System Requirements: Windows 10 or later, macOS 12 or later
• User manual found here: Cameo 5 Manual
